Polycrystalline Module

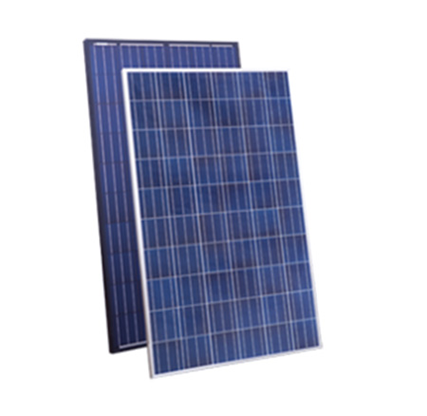

SP Poly Crystalline modules come in two major series, SP6-60 with 60 cells and with output from 245 to 265 Watts and SP6-72 with 72 cells and power output from 295 to 315 Watts. The Poly Crystalline solar offered by SAHAAL SOLAR have a certified static force of 5400 Pa/2400 Pa (IEC 61215) and features with 10 years manufacturer´s warranty and a 25 years linear power warranty on performance outputs, with relevant added value with respect to the more ______ two-phase warranty. The SP6-60 and SP6-72 series are further resistant against sand and dust (_________ to the standards EN 60068-2-68) for efficient deployment in ______-____ areas.

SP6-60 Series

The SP6-60 series is compliant to high international standards including EN 60068-2-68 and comes with a 25-year linear power warranty on performance output which further ensures safe return on investments over time, also offering you a most reliable choice for projects conforms to exotic conditions such as in ______-____ environments.

  • High module efficiency, up to 16.29%
  • Industry-leading 25-year linear power warranty on outputs
  • Highly resistant to sand and dust
Type : SP6-60, Polycrystalline Module 60 Cells, 245-265 W
Output : 245 Watts to 265 Watts
Dimensions : 1640 x 992 x 40 mm
Weight : 19.5 Kilograms
Junction Box : IP67
Available in : Alu & Black

JWP 60 Series Highlights

  • Proven German/Bavarian quality of products and manufacturing facilities
  • Own Research and Development center
  • German family business
  • Own solar machines (J.V.G. Thoma GmbH)
  • Free recycling (PV Cycle)
  • 12 year product guarantee
  • 30 year achievement guarantee
Type : JWP60, Polycrystalline Module 60 cells, 250 Watts
Output : 250 Watts
Dimensions : (L)1640 x (B) 995 mm
Weight : 20.0 Kilograms
Cell size : 156 mm x 156 mm
Cell material : Polykristalline SI
Front cover : Solar Glass, Hardening
Backside cover : Standard Glass
Cable length : 1000 mm
Connector type : Compatible
Bypass Diodes : 3

HPTP Technology

  • no PID effect
  • up to 50 year life time
  • Maximum (sustained) Temperature: 1 25 ° C.
  • optimum weak light behavior
Dimensions : (L) 1 6 40 mm x (B) 995 mm
Weight : 20,0 K G
Number of cells : 60
Cell size : 156 mm x 156 mm
Cell material : Polykristalline SI
Front cover : Solar Glass, Hardening
Backside cover : Standard Glass
Cable length : 1000 mm
Connector type : MC4 compatible
Bypass Diodes : 3 Manufactured and tested according to IEC standard 6121 5 and DIN 61730
Climate : Neutral prepared
