Delicate, concise and safe, an optimal balance of performance and price, contracted but not simple; Sidewall compressed O-ring helps the box easily reach IP67; The perfect combination of D2PARK circuit packaging and copper heat dissipation technology motivate the whole appliance; The one-way breathable film technology balances the inside and outside temperature and pressure. Safe connection and solar panel protection are its primary responsibility. Approved by TUV and UL, and universally accepted. QC Solar, innovation everywhere!
Product
SPJ-18
Rated Voltage
IEC 1500V/UL1500V
Rated Current (J/D)
IEC15A/20.2A/25A (UL30A)
Glue Volume
3*8.5mL
Application Class
Class A
Temperature Range
-40℃~+85℃
Protection Degree
IP68

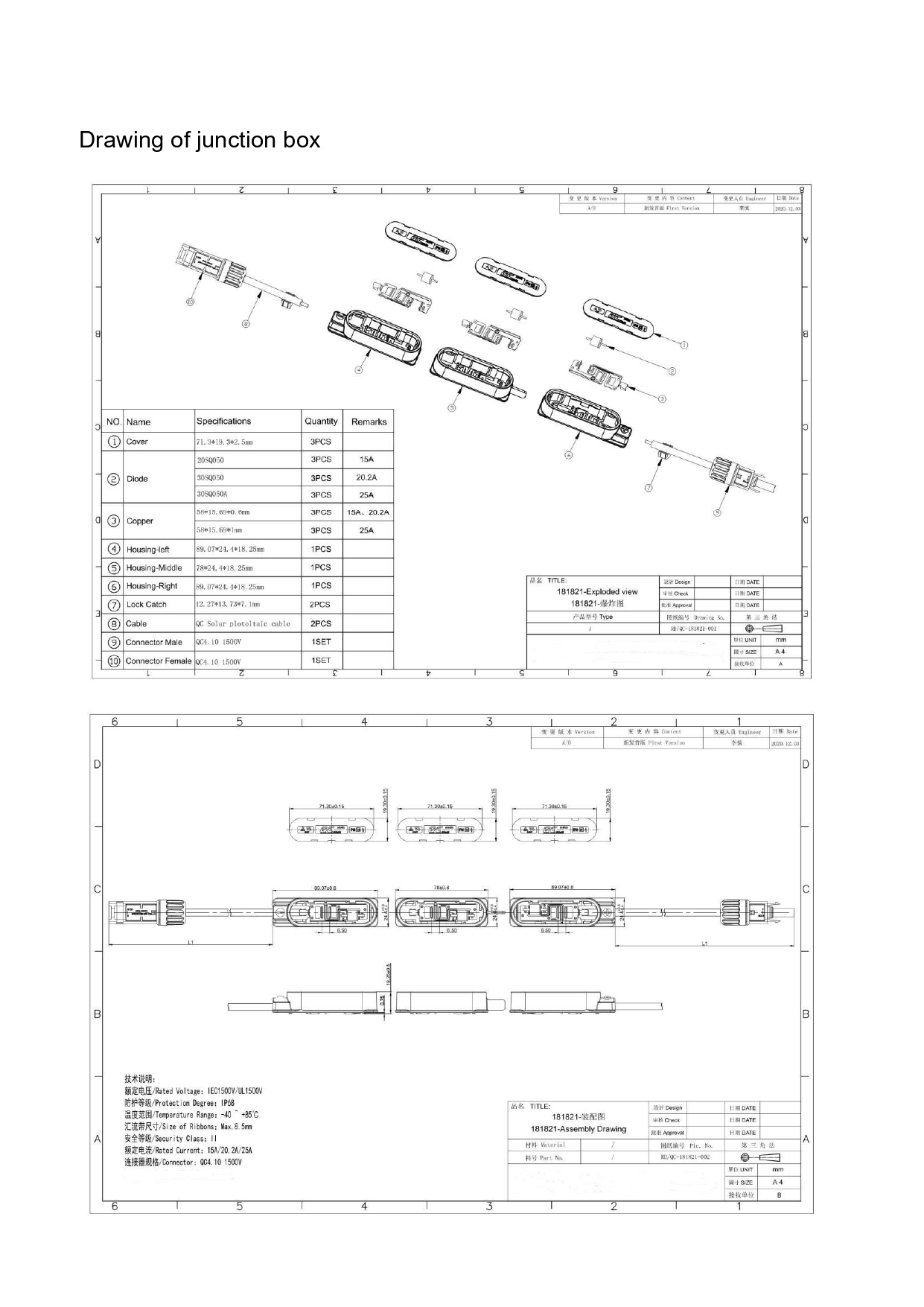

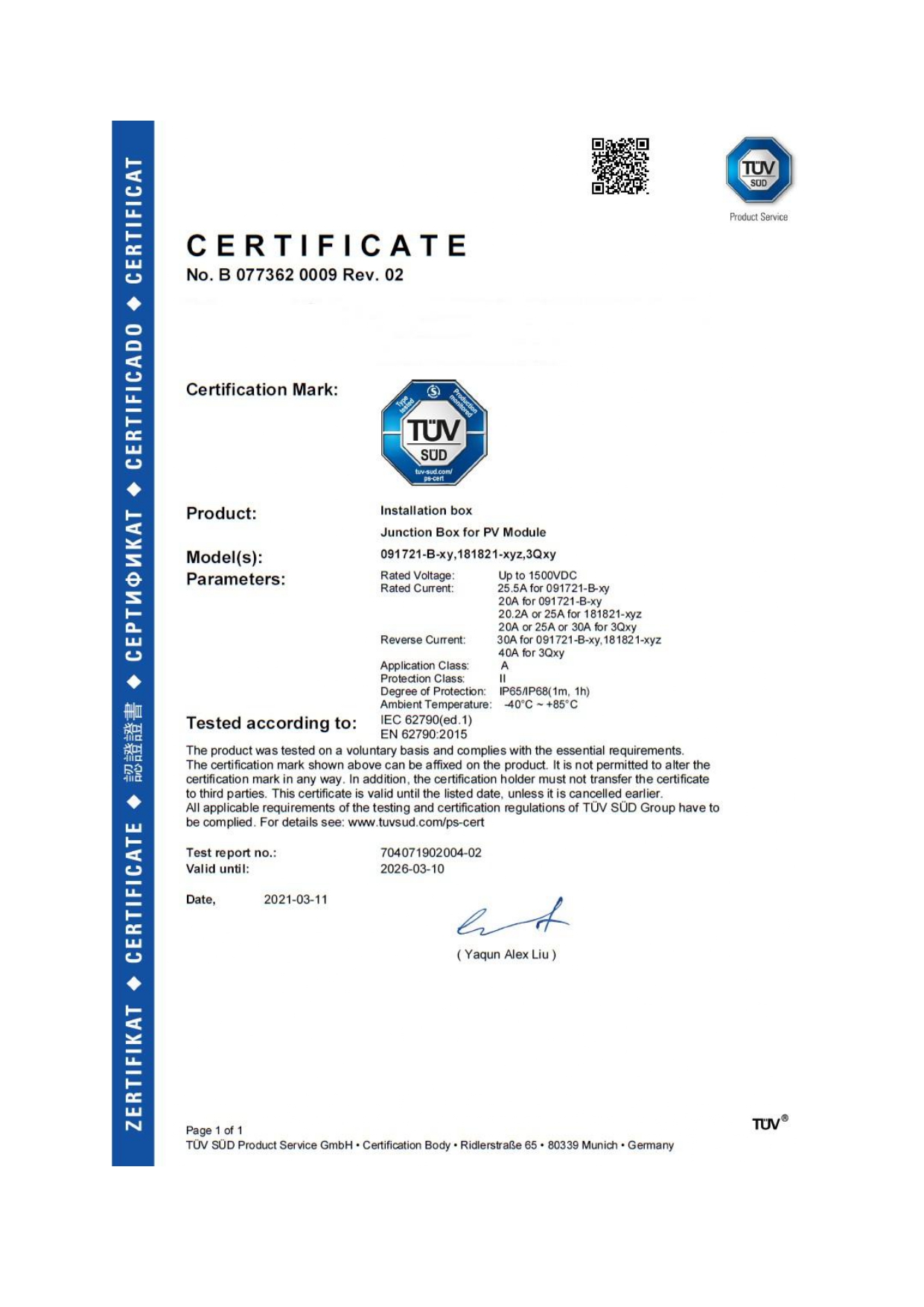

TUV Certificate NO
R50431824
UL Certificate NO
E312223
Flame Class
5VB
PV Junction Box
Model No. SPJ-20
SPJ-20 is designed with full irrigation. A solar module that is suitable for single polycrystalline 5 and 6 cells for high power. There are six sets of bus-bar output ports, which are welded. At the same time, the Junction box can reduce the power loss of the component and improve the reliability of electrical connection.
Product
SPJ-20
Rated Voltage
1500(V)(TUV)
Rated Current (J/D)
20A , 25A
Working Temperature Range
-40℃ ~ +85℃
Security Level
Class ||
Water Proof Structure
Pouring Sealant
Glue Amount
~ 24 ml
Protection Grade
IP68
Application Cable
4mm2
Bus-Bar Width
<=8mm
Bus-Bar Connections
Welding
Port Centre Distance
10 mm
Metal Materials
Copper
Insulation Materials
PPO/PA66

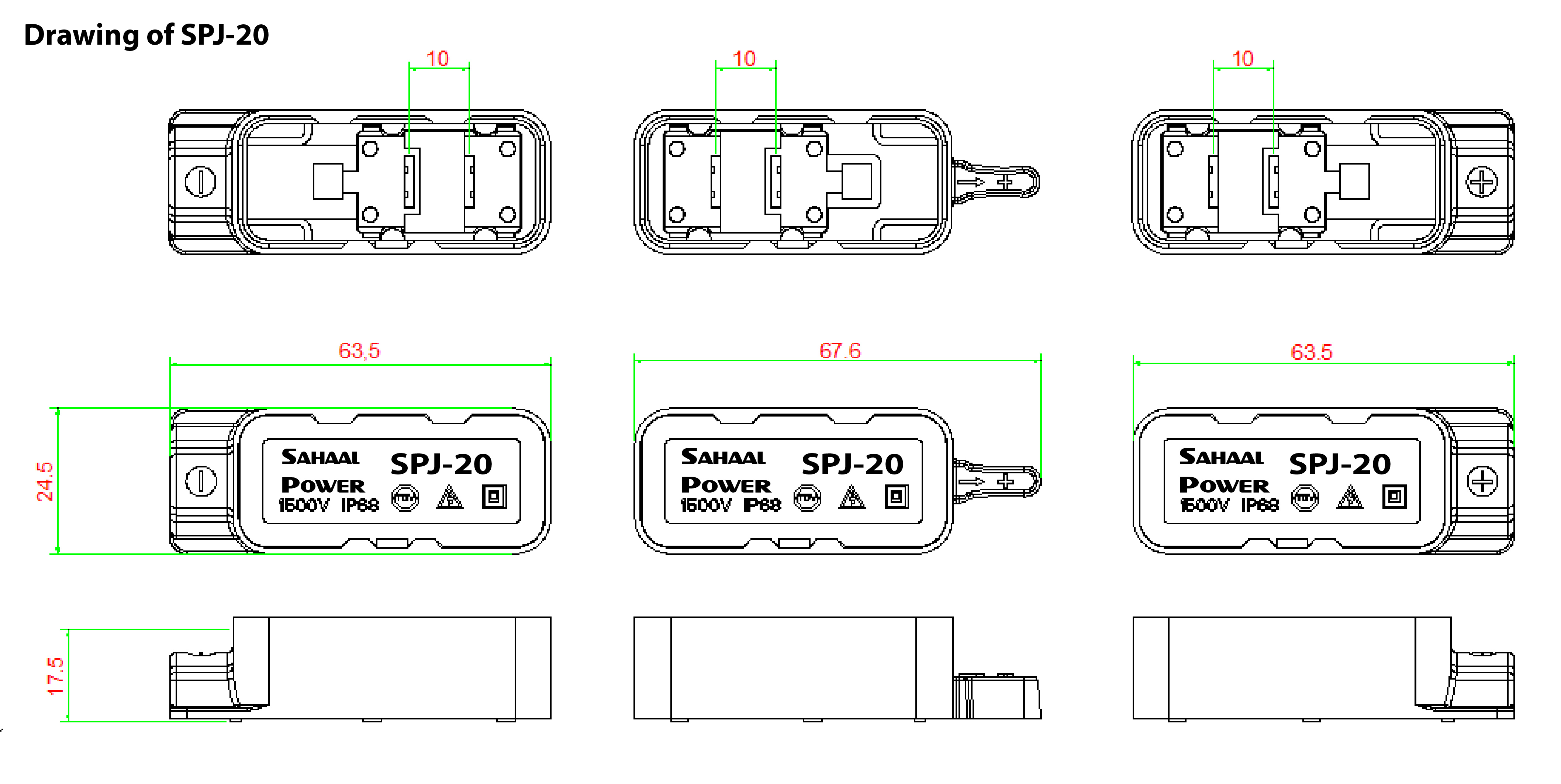

Dimension
63.5*24.5*17.5mm,67.6*24.5*17.5mm,63.5*245*17.5mm
Optional Connector
SPJ-18, MC4 EVO2
Installation method:

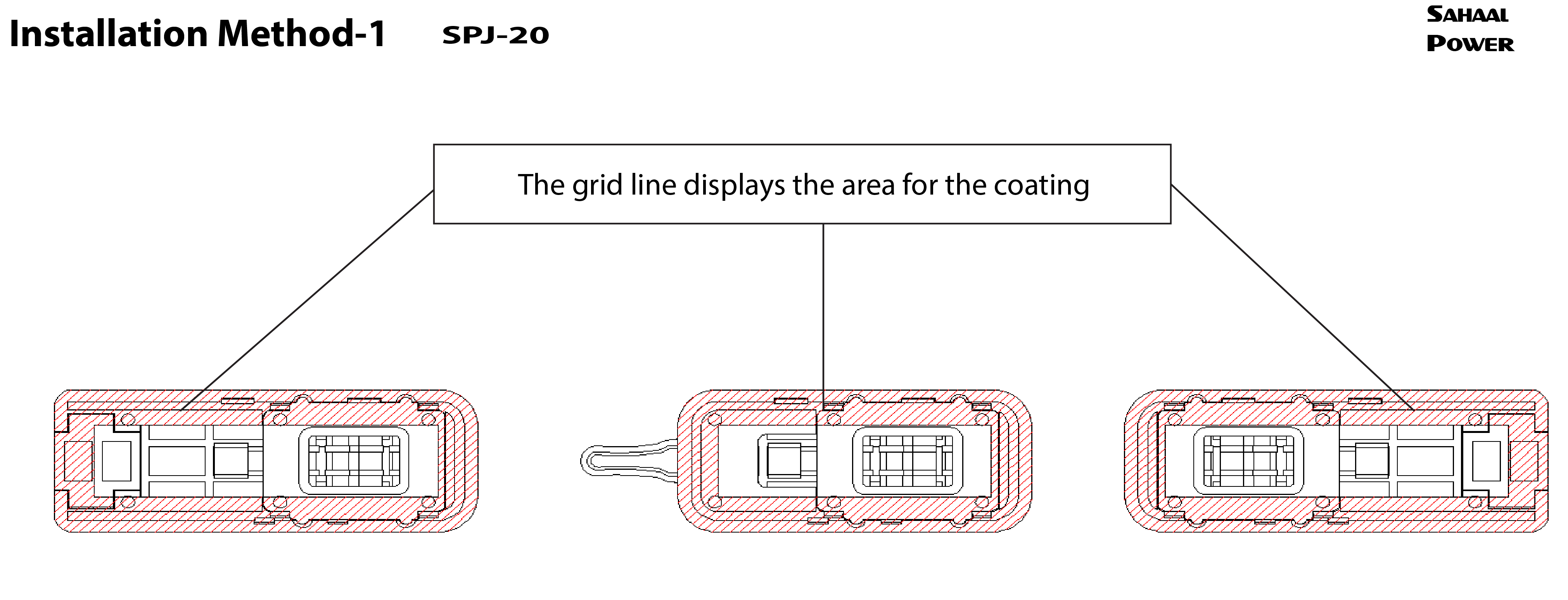

1. The junction box is sticky: The silica gel with a certain specification and type is applied, and the thickness of the silicone layer is 0.6 mm, which is based on the right amount of glue. The junction box is kept in a horizontal position while the junction box is bonded.
Bus-Bar Installation:

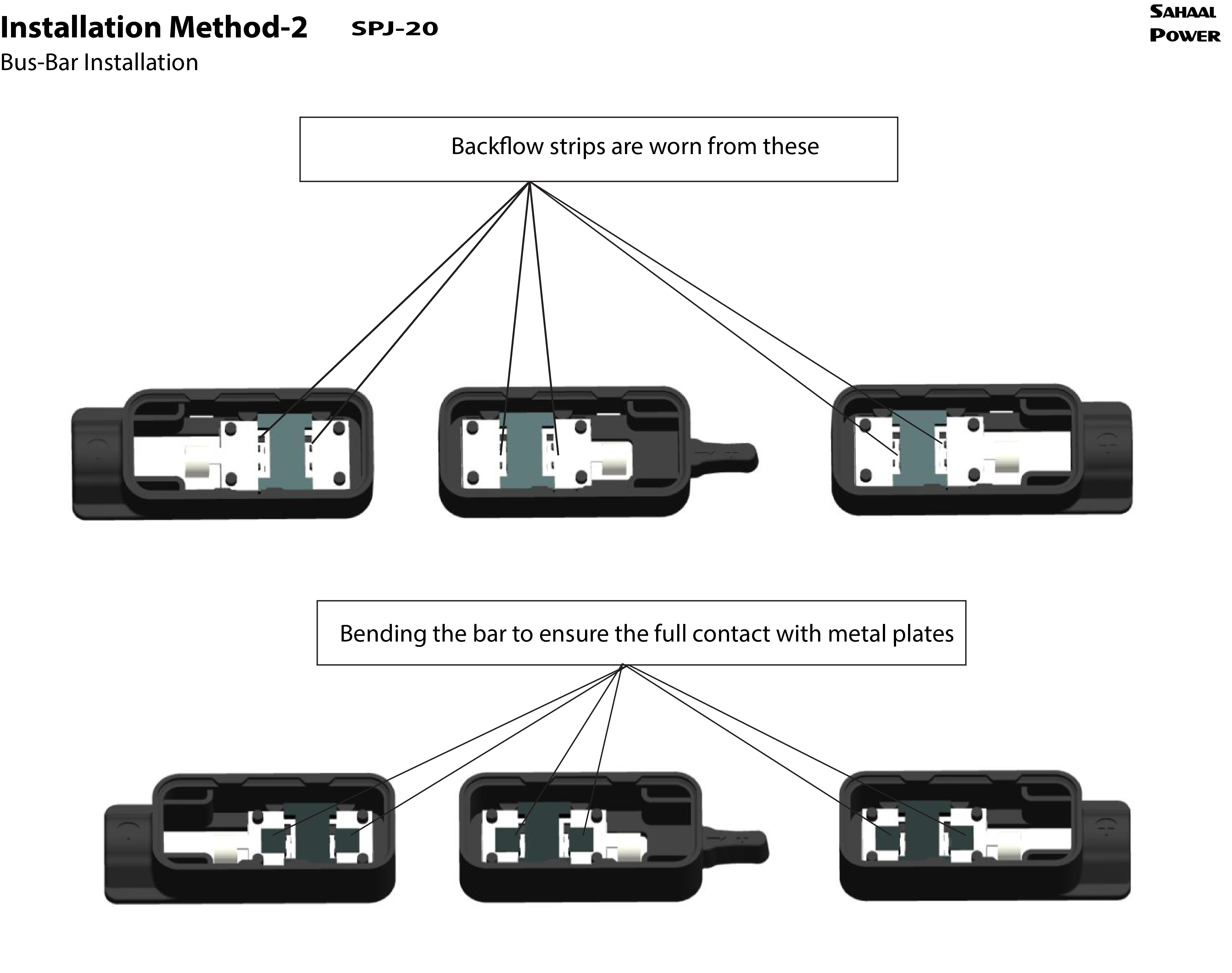

2. The confluence bar is aligned with the junction box port, and then bends the flow bar downward, allowing the confluence bar to be fully exposed to the metal pieces.
Bus-Bar Welding:

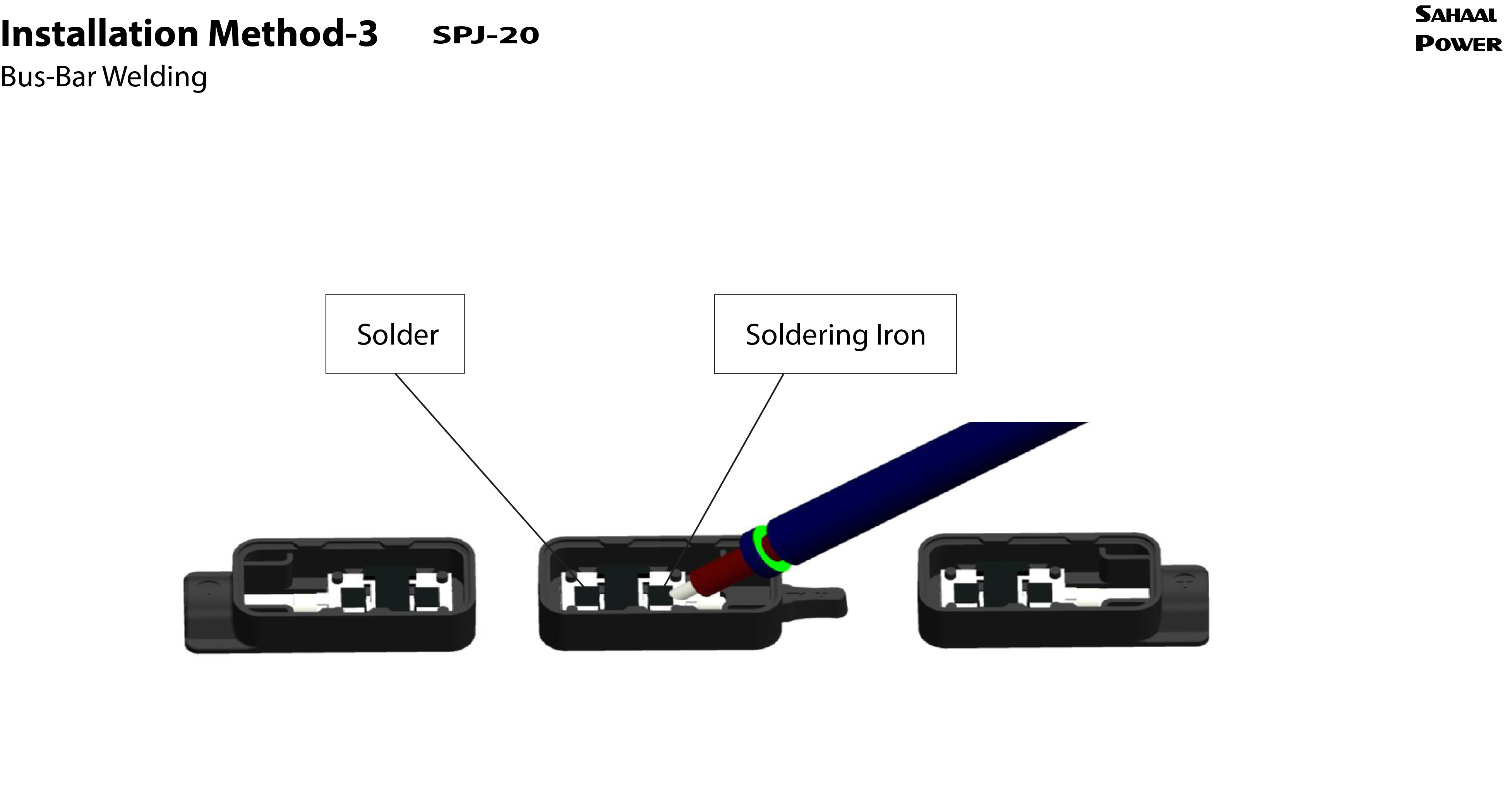

3. In the welding process, ensure that the wire and metal plates are welded firmly and reliably.
